100-ton hydraulic Canadian Press, paint choices: on special order, we can give your new Canadian Press (normally yellow) any colour paint that is available.

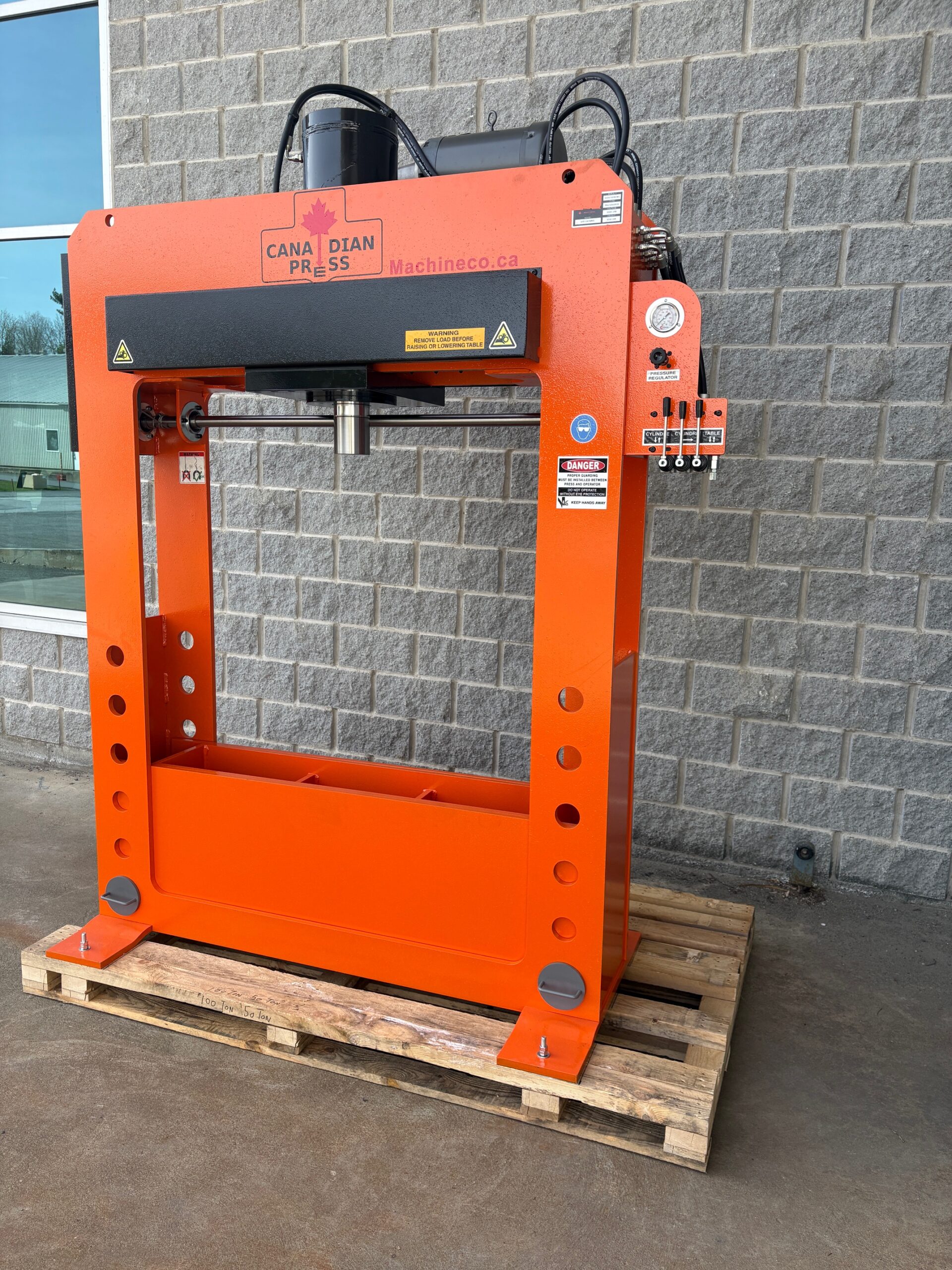

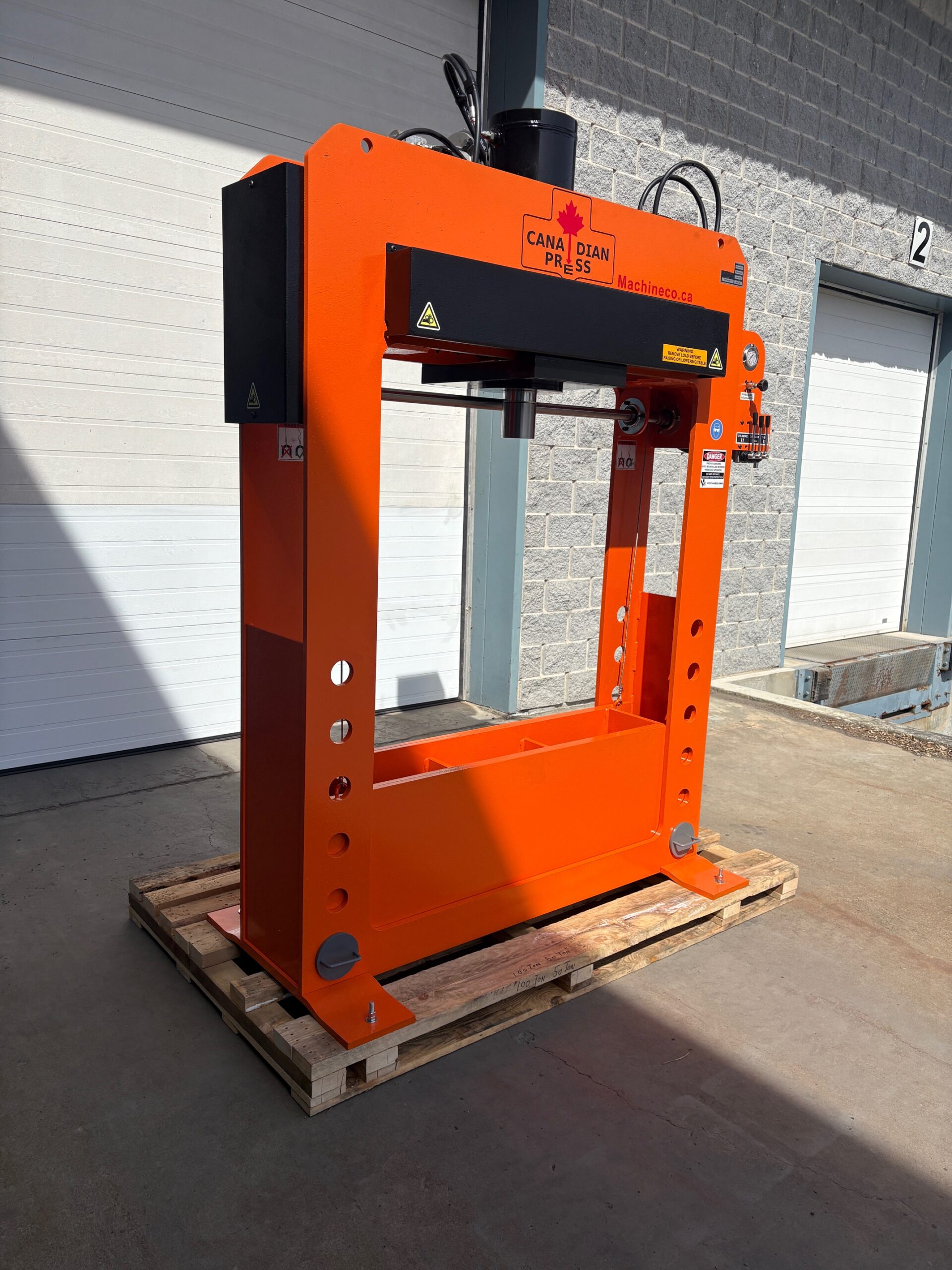

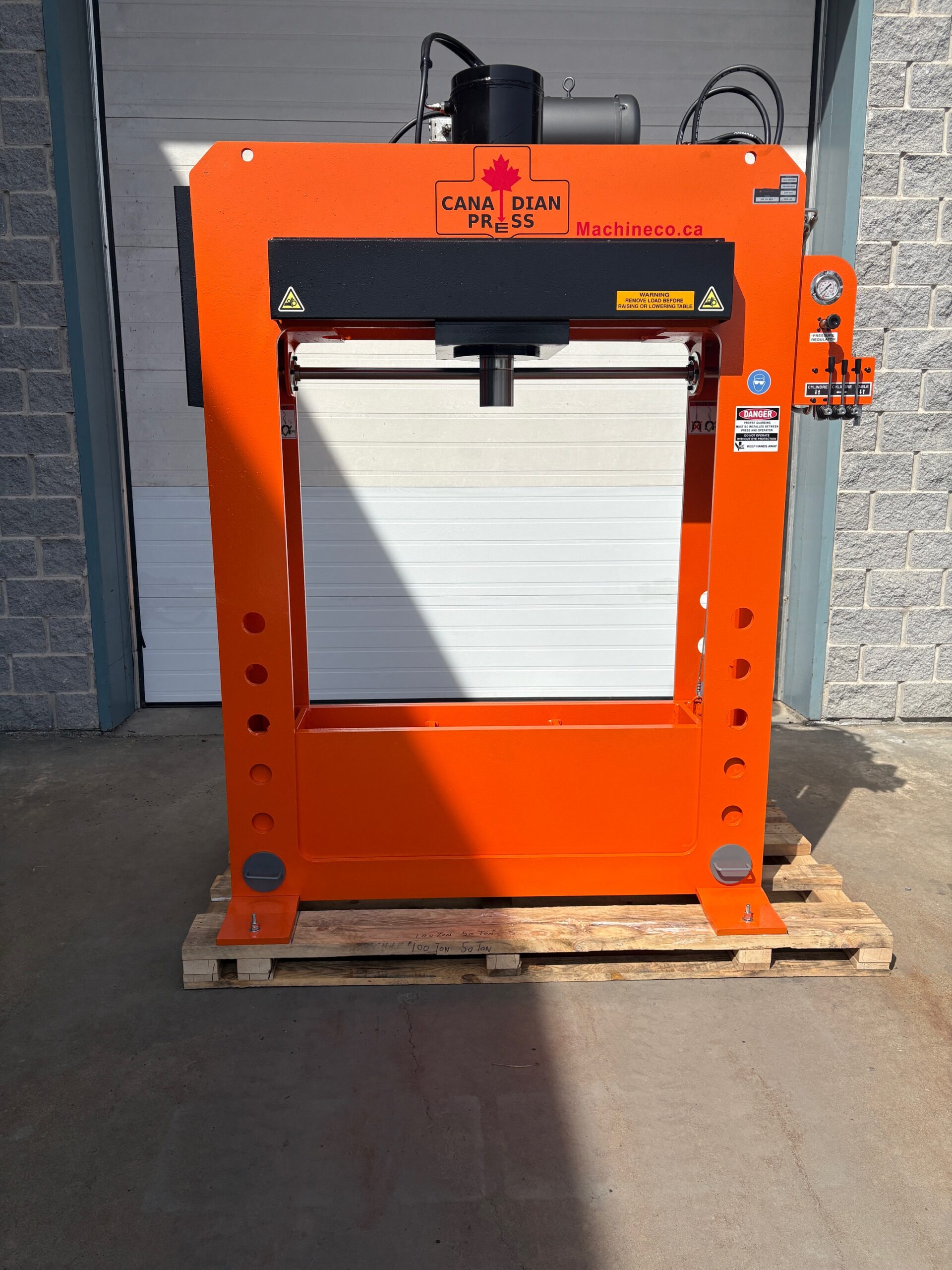

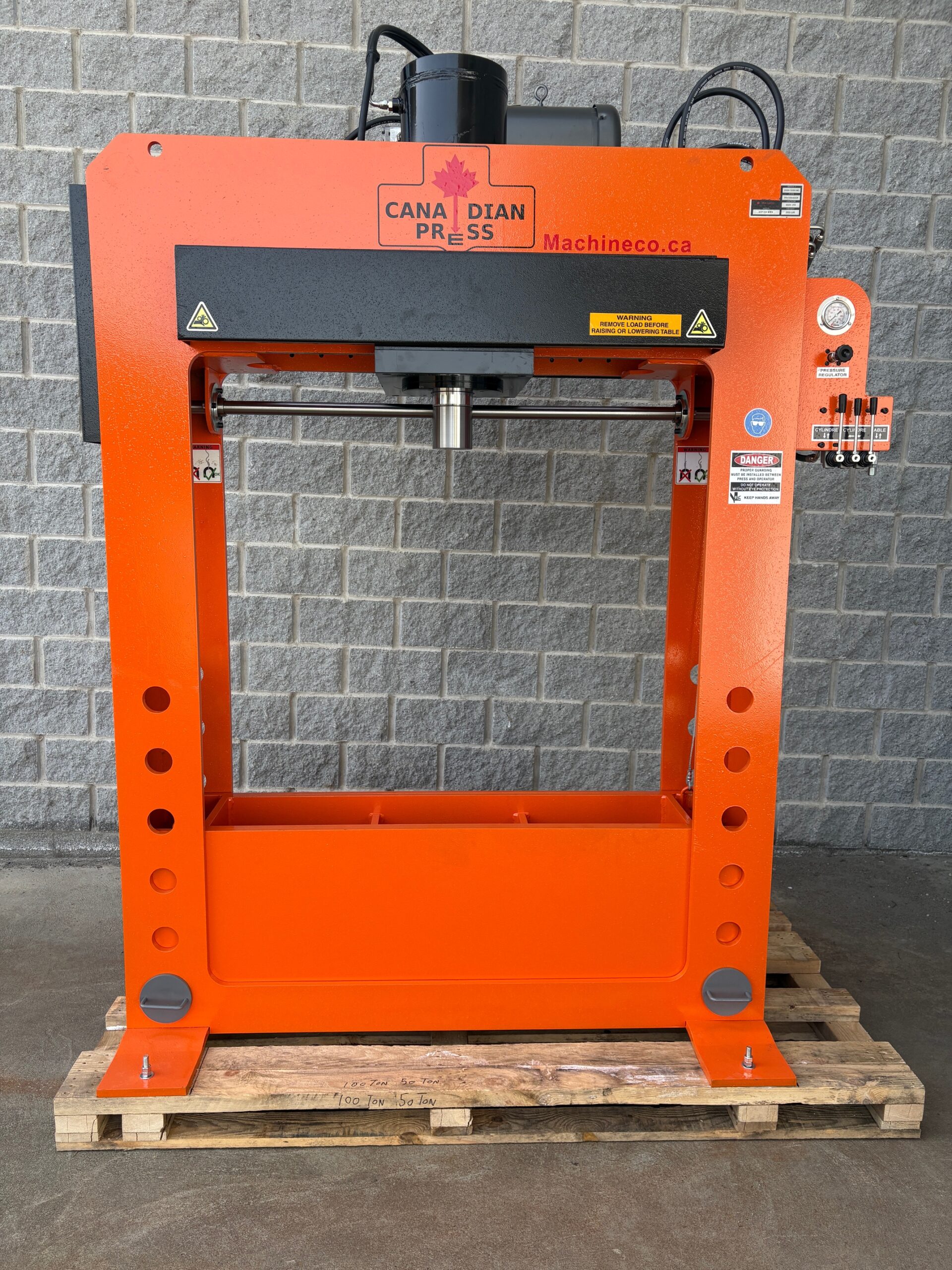

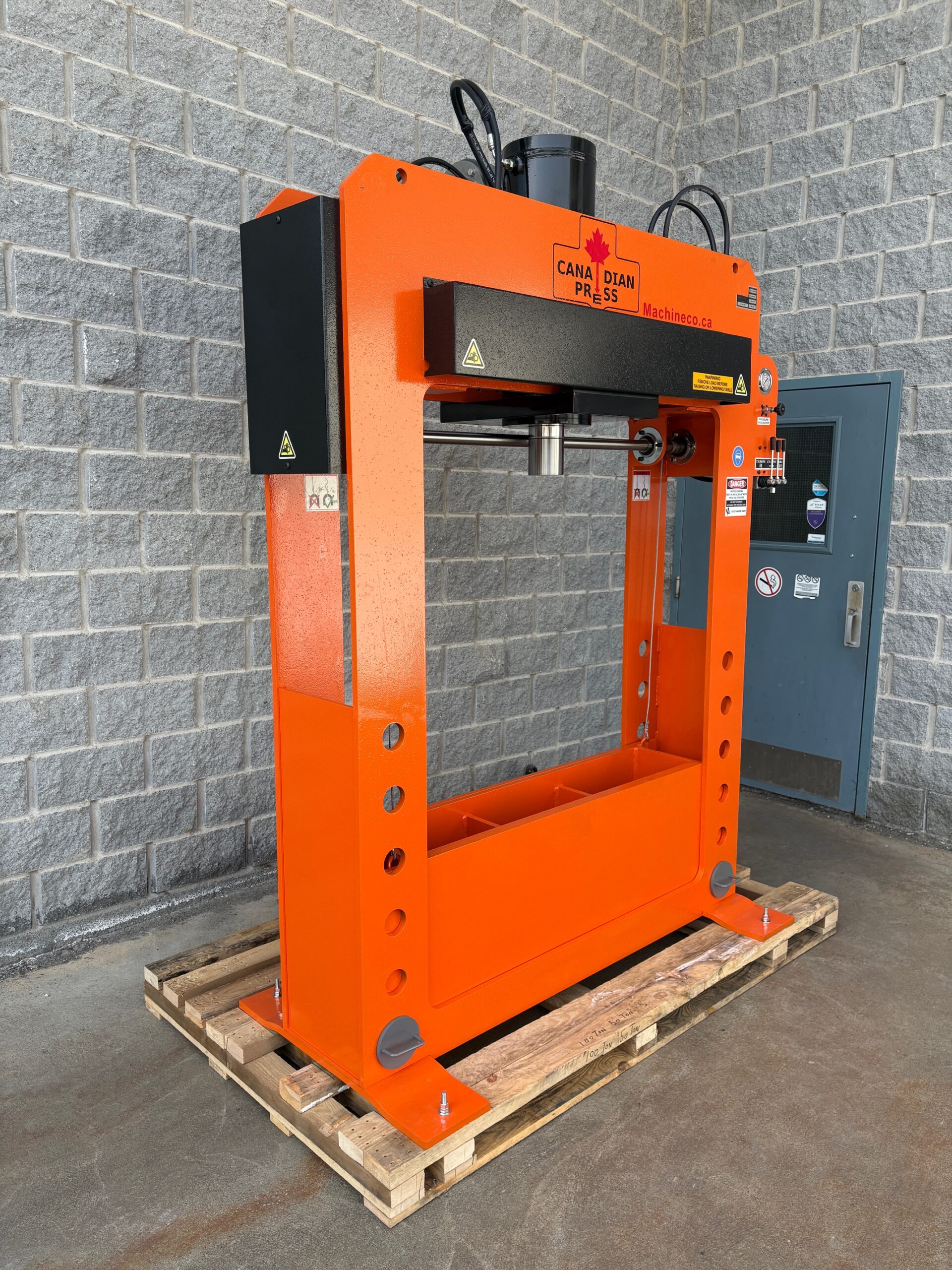

See the attached 5 views of our 100-ton model of Canadian Press (moving work head), now in Snap-On orange colour.

Specifications

• Manufacturer: MachineCo (Canadian Press Division)
• Model number: HFP-100
• Power: 10 HP, 3 phase (10 HP 1-phase 230 V optional)
• Bore: 9″ (230 mm)
• Stroke: 16″ (406 mm)
• Rod diameter: 4.0″ (102 mm)
• Ram speed: 19 IPM press, 24 IPM return
• Capacity: 100 tons (200,000 lb / 90,720 kg)
• Weight: 3,000 lbs (1361 kg)
• Dimensions: 50″ length x 82″ width x 100″ height
• Origin: Made in N. America, USA parts, assembled in Canada

Features

• Solid one-piece frame plate; no welds
• Pressure/load regulator included

Options

• All standard 3-phase voltages available at the same price
• Other options available at extra cost, including broaching, extra width, height or stroke, foot pedal, front and rear safety guards, V-blocks, emergency stop and stroke control

Notes

We build them your way. Call now: 514-867-3131

(2023) Call for updates.
